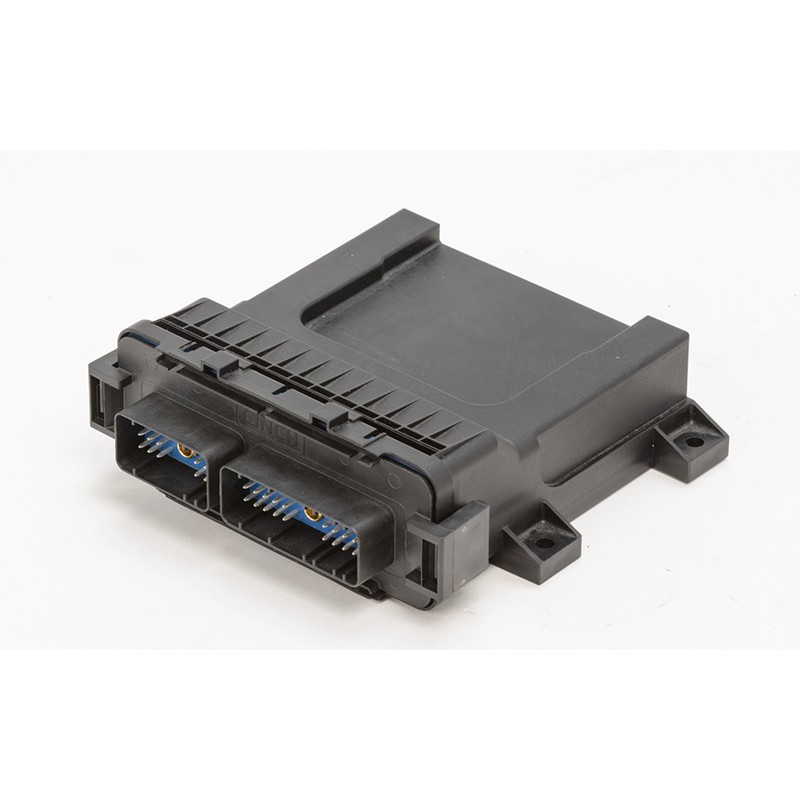

Electronic Control System

More details

MAIN FEATURES

  • Supply Voltage: 8 ÷ 36V.

  • Maximum current supplied: up to 20A for each connector (40A total).

  • Electromagnetic certifications: Emission Test: EN 55011 Class A, Immunity Test: EN 61000-4-2,3,6.

  • Protections: reverse polarity, overvoltage, over­current and short circuits.

  • Working temperature: -40° ÷ 85°C.

  • Processing unit: dual 32 bit-CPU.

  • Stockage temperature: -50° ÷ 125°C.

  • Number of connectors: 2 (30 + 18 pins).

  • Number of PWM/Digi­tal Outputs: 16 outputs programmable as propor­tional (PWM) or digital (ON/OFF):

    • up to 5A for digital;

    • up to 2A for PWM proportional (with 12 bit resolution);

    • high and low side protected with current feedback.

  • Number of Analog / Digital Inputs: 10 (with 12 bit resolution, configura­ble as digitals, or 4-20mA, or 0-5V, or 0-10V, or ratiometrics).

  • Communication pro­tocol: 2 independent CAN lines (J1939, CANopen).

  • Parameters Calibration / Diagnostics: Wireless, using “BT 2.1 + EDR” (2.4 GHz) trasmission between ECS (built-in antenna) and a PC with a dedicated software.

  • Auxiliary voltages for the power supply of external devices: 5V, 12V, Vsupply.

  • Sealing: IP67, IP69K.

  • Salt Spray: 96 Hrs.

  • Temperature Life: 1000 Hrs @ 85°C.

  • Fluid Resistance: Resists to most fluids used in industrial appli­cations.
