1.5DRE

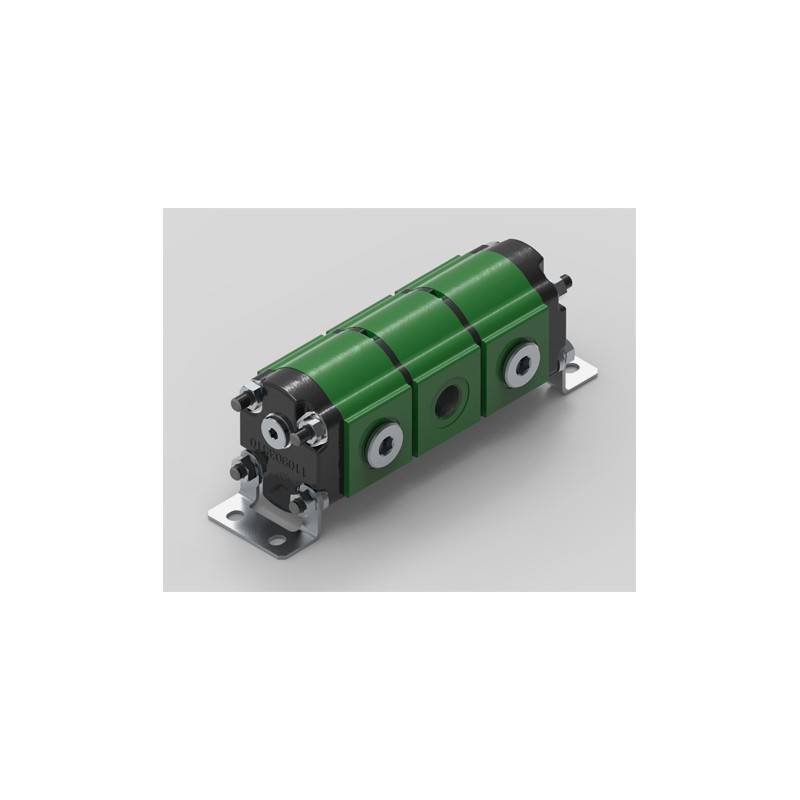

Gear flow dividers made with aluminium alloy body and cast iron end covers.
- High volumetric efficiency achieved by floating bushings and axial compensation.
- Integral gear with 12 teeth.
- Ports: European, German and SAE Standards.
- Common Inlet Port available also on the side-cover.
- Assembling up to 6 Stages possible.
- 2DRE-VA: cylinder synchronize function.
Specifiche tecniche
| Displacements | cmc/rev-cu.in.rev | 2.8 - 0.17 |
| Max outlet pressure P1 | bar-psi | 250 - 3600 |
| Max outlet pressure P2 | bar-psi | 270 - 3915 |
| Max outlet dp | bar-psi | 50 - 725 |
| Min speed | min-1 | 1200 |
| Max speed | min-1 | 4500 |
| Min flow per section | l/min - gpm | 3.54 - 0.93 |
| Max flow per section | l/min - gpm | 13.26 - 3.49 |
