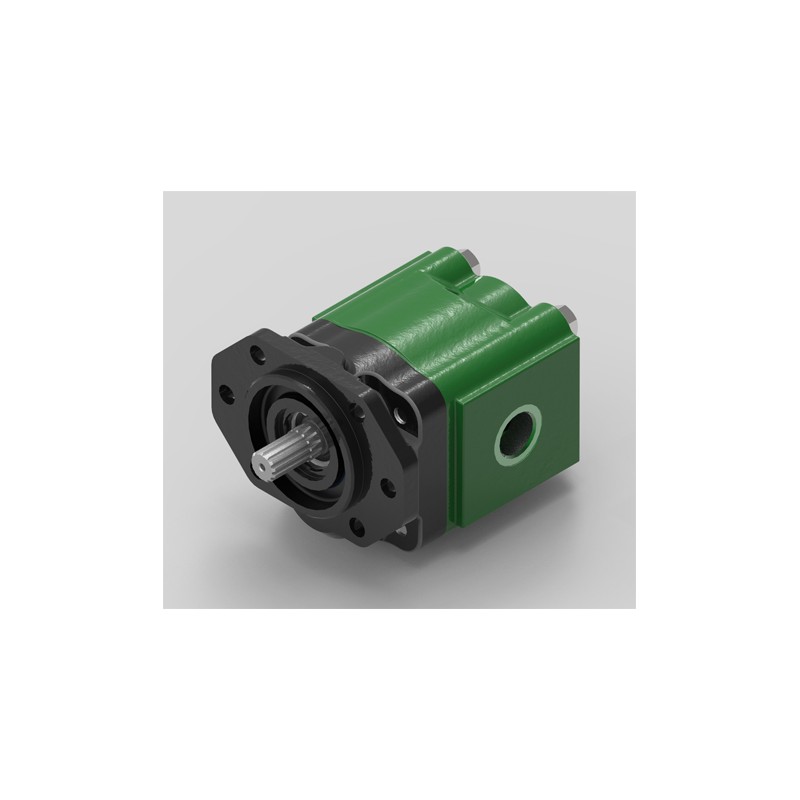

PG330 - REVERSIBLE PUMPS WITH INTERNAL DRAIN - TRUCK RELEASE

Gear pumps made in spheroidal cast iron

More details

Common features:

  • internal drain to avoid external piping
  • bodies always machined with side and rear ports

American configuration:

  • flange SAE B;
  • shaft 13T-16/32 DP ANSI B92.1a
  • ports threaded SAE O-ring boss

European configuration:

  • flange and shaft as per ZF standard
  • ports threaded BSPP

Specifiche tecniche

Displacements cmc/rev-cu.in.rev 23.4 - 1.43
Working pressure P1 bar-psi 260 - 3800
Weight kg - lbs 12.77 - 28.15
Intermittent pressure P2 bar-psi 280 - 4000
Peak pressure at P2 bar-psi 300 - 4350
Max speed at P2 rpm 3000
Max speed at P1 rpm 400
